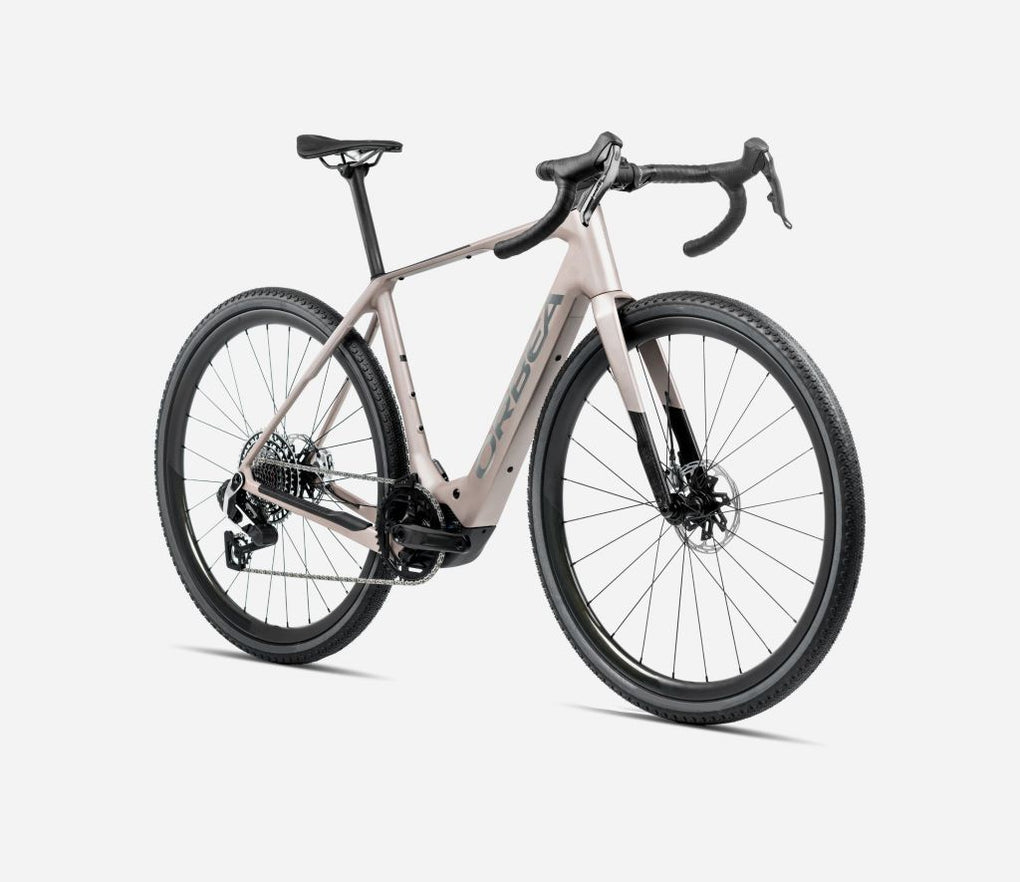

Orbea - Denna M30 - E-Gravel - 2025

Individual freedom

The Orbea Denna stands for freedom. Redesigned from the ground up with a focus on comfort and versatility on rough surfaces, this is not just a road bike with wide tires. The specially tuned EP drivetrain offers more control on loose surfaces at a low cadence and has plenty of power for extreme steep sections. With numerous options, the Denna can be easily configured - perfect for the intended use.

Highlights of the Orbea DENNA M30 Gravel E-Bike

• The heart and soul of the bike is a lightweight frame and fork made of OMR carbon.
• Powerful Shimano EP801 mid-motor
• Shifting is via the 1x12-speed Shimano GRX RX822.
• Hydraulic Shimano RX400 disc brakes
• Vittoria Terreno gravel tires

• Fully integrated cables

Specifications:

• Frame: Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.
• Fork:Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
• Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
• Battery: Orbea Internal 420Wh
• Motor: Shimano EP801
• CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A
• Remote: EN600-L
• Chainring: Alloy EP8 42t
• Crank: Shimano Steps EM600
• Shifters: Shimano GRX RX610
• Cassette: Shimano CS-M7100 10-45t 12-Speed
• Rear derailleur: Shimano GRX RX822 GS
• Chain: Shimano M6100
• Chainguide: Orbea eBike chainguide
• Handlebar: OC Gravel GR31, Reach 70, Drop 110
• Stem: OC Road Performance RP22, -5º
• Brakes: Shimano RX400 Hydraulic disc
• Wheels: Oquo Road Control RC25PRO
• Tyres: Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
• Front Wheel Axle:"Orbea Thru Axle 12x100mm M12xP1 Hollow
• Rear Wheel Axle: Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
• Seatpost: OC Performance XP10 Carbon, 27.2mm, Setback 0
• Saddle: Selle San Marco Shortfit 2.0 Start Up Off Road
• Handlebar Tape: Orbea Anti-Slippery/Shock Proof
