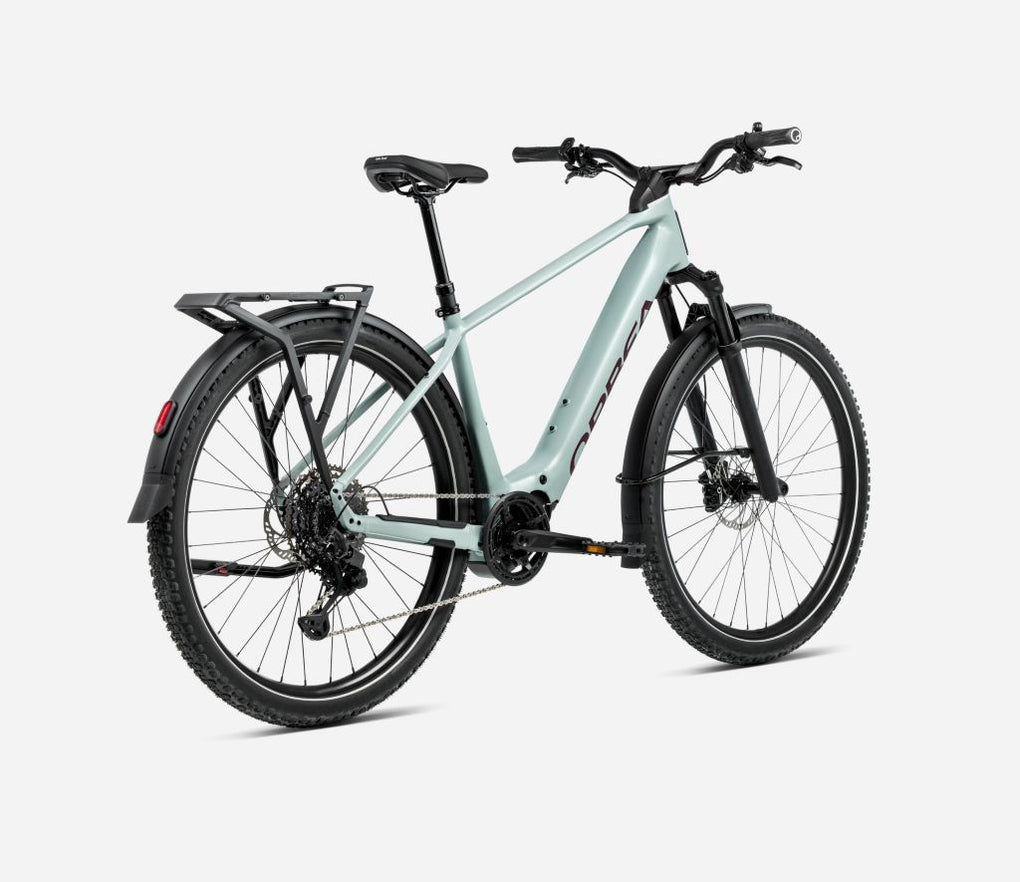

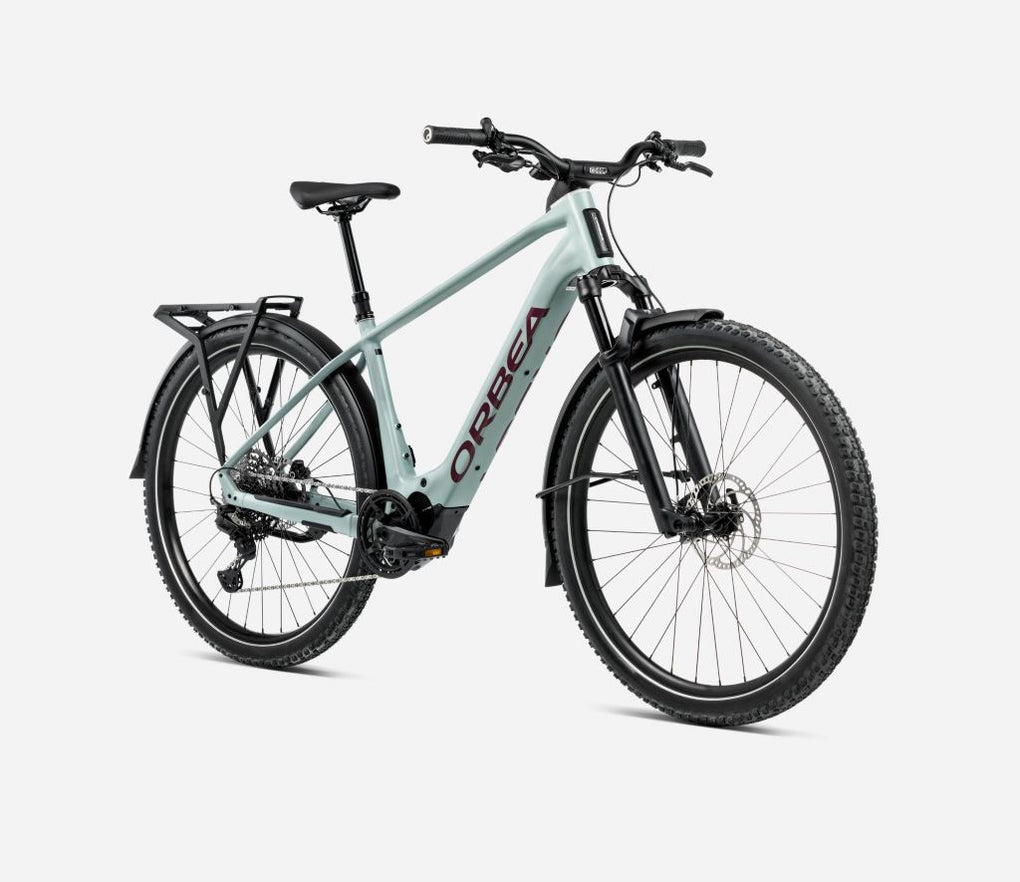

Orbea - Kemen ADV 30 - 2025
Escape the everyday
The best tools are ones you use daily – the perfect bike is one that fits seamlessly with your many needs. Tireless, capacious and effortless, Kemen goes beyond simple utility by turning ebike rides into delightful mini-adventures. Whizz through the morning traffic, breath fresh air on your way to work, let Kemen take the strain so you don´t break a sweat. After work take the long way home, escape the bike lane and have an urban adventure.
Features of the Orbea Kemen Adventure 30 City E-Bike
- Aluminum frame with ground welds
- Powerful Shimano EP6 motor with 85Nm torque
- Internal 540Wh battery expandable by 252Wh with Range Extender sold separately
- SR Suntour suspension fork with 100mm travel
- Fully equipped with mudguards, lights and rear rack
The EP6 motor has plentiful power for the steepest roads and the heaviest loads, more than enough to get you up to speed quickly and whisk you to work without breaking a sweat. The cutting edge battery means that even with a fully loaded bike you can expect about 5 hours of riding.
Kemen´s sturdier carrier can take a child seat, and is ready for heavier loads. Kemen has a slimmer, lighter rack with lots of mounting options, with a maximum total load capacity of 30kg.
To keep you very safe on the roads, the Kemen versions come with daytime running lights front and rear. And the brake light warns traffic when you pull the brake.
Specifications:
- Frame: Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
- Fork: SR Suntour XCR34 100mm Coil Q15x110
- Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
- Battery: Orbea Internal 540Wh (Optional 252 Wh Range Extender)
- Motor: Shimano EP600
- Display: N/A
- CHARGER: Orbea 2.Generation eBike Smart charger 42V/2-4A
- Remote: EN600-L
- Chainring: Alloy 40t w/chainguard
- Crank:Shimano Steps EM600
- Shifters: Shimano Cues SL-U4000
- Cassette: Shimano CS-LG300 11-46t 9-Speed
- Rear derailleur: Shimano Cues U4000 GS Shadow
- Chain: KMC eGlide
- Handlebar: Orbea Urban, Integrated Light, Rise 50, Width 760
- Brakes: Shimano MT200 Hydraulic Disc
- Wheels: Alloy, Tubeless, 29", 29c, 32H
- Tyres: Schwalbe Johnny Watts LR, 60-622, Reflective Tape
- Pedals: VP-537 Black
- Front carrier: N/A
- Rear carrier: Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
- Mudguard: Curana Apollo Orbit 70mm
- Front Position Light: Orbea integrated, USB-C charging point
- Front light: Supernova Starstream Pure, Low Beam
- Rear light: Supernova TL3 Z
- Quick stand: Massload rear adjustable
- Seatpost: Alloy, 31.6mm, Setback 0
- Saddle: Selle Royal Vivo Ergo
