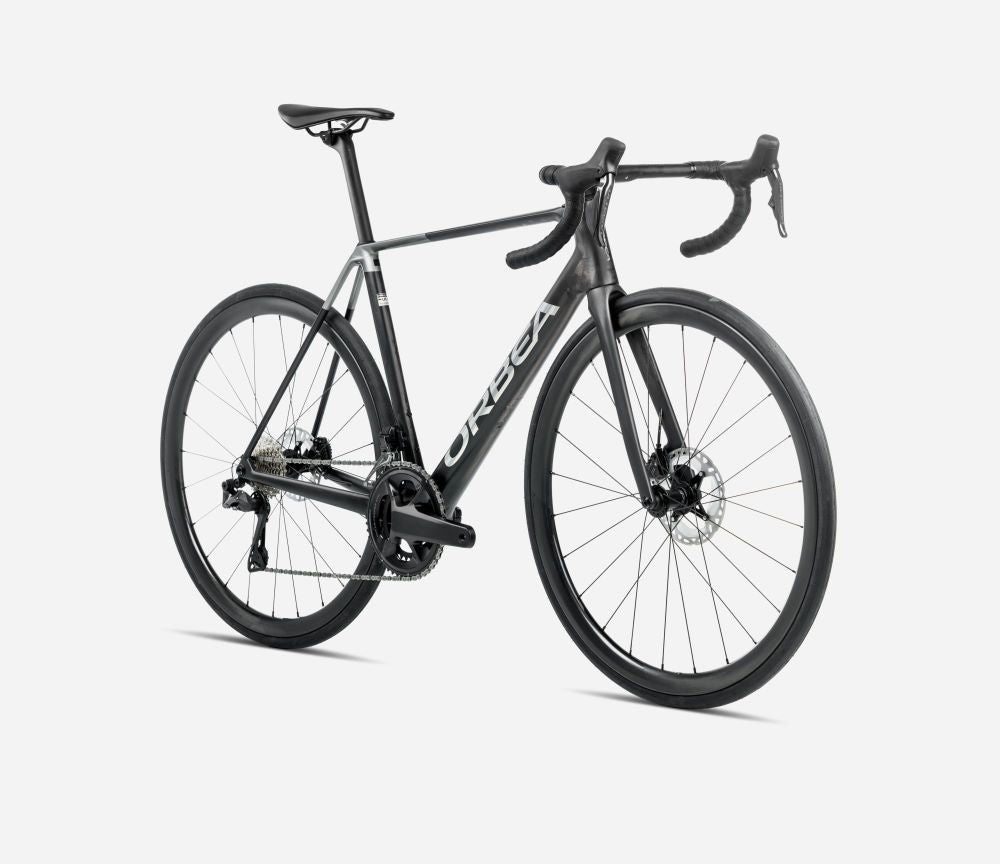

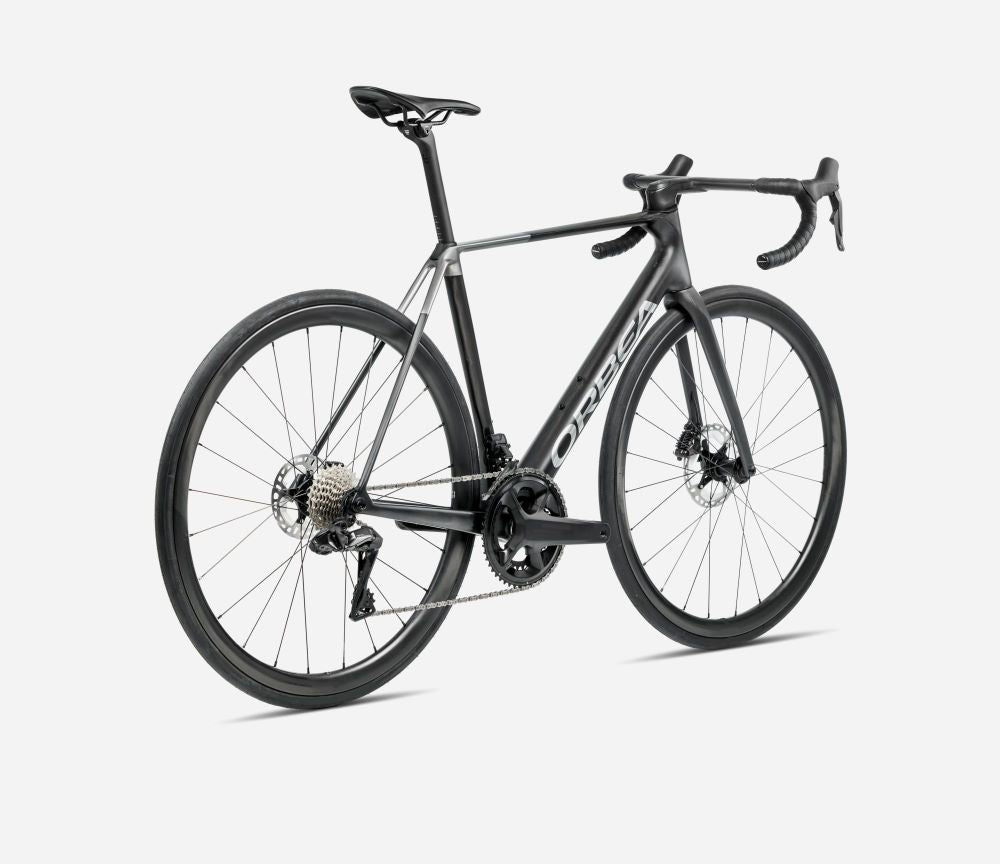

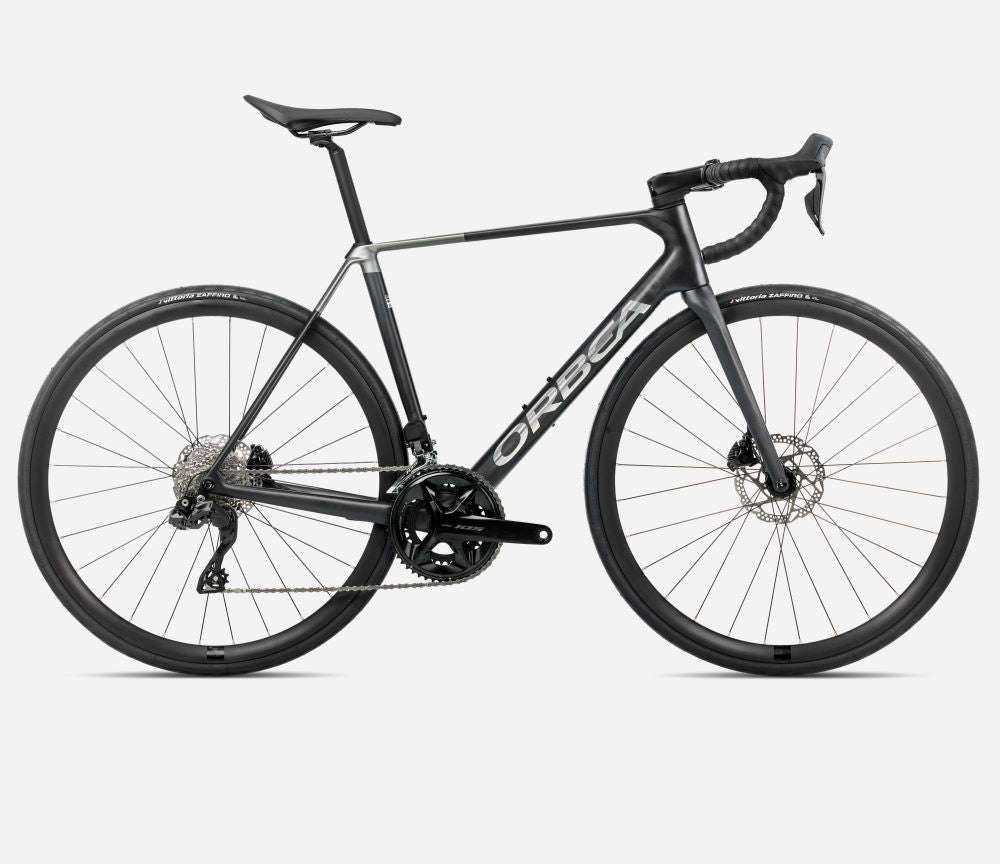

Orbea - Orca M30i - 2026
Orca is our lightweight carbon climbing machine, made for those seeking the perfect partner with which to attack every mountain pass.
Specifications:
- Frame: Orbea Orca carbon OMR 2026, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
- Fork: Orbea Orca OMR ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
- Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
- Crankset:Shimano 105 R7100 34x50t
- Shifters:Shimano Di2 R7170
- Cassette Shimano 105 R7100 11-34t 12-Speed
- Rear derailleur; Shimano 105 Di2 R7150
- Front derailleur Shimano 105 Di2 R7150
- Chain Shimano M6100
- Handlebar: OC Road Performance RP31, Reach 80, Drop 125
- Stem: OC Road Performance RP23, -5º
- Brakes: Shimano R7170 Hydraulic Disc
- Wheels: Alloy, Tubeless, 700c, 19c, 28H
- Tyres: Continental Grand Prix Foldable 700x28c
- Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Hollow
- Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Hollow
- Seatpost: SP 0.2 Carbon, 27.2mm, Setback 20
- Saddle: Fizik Aliante R5
- Handlebar Tape: Orbea Anti-Slippery/Shock Proof
- Storage: OC Toolbox TB02PP
