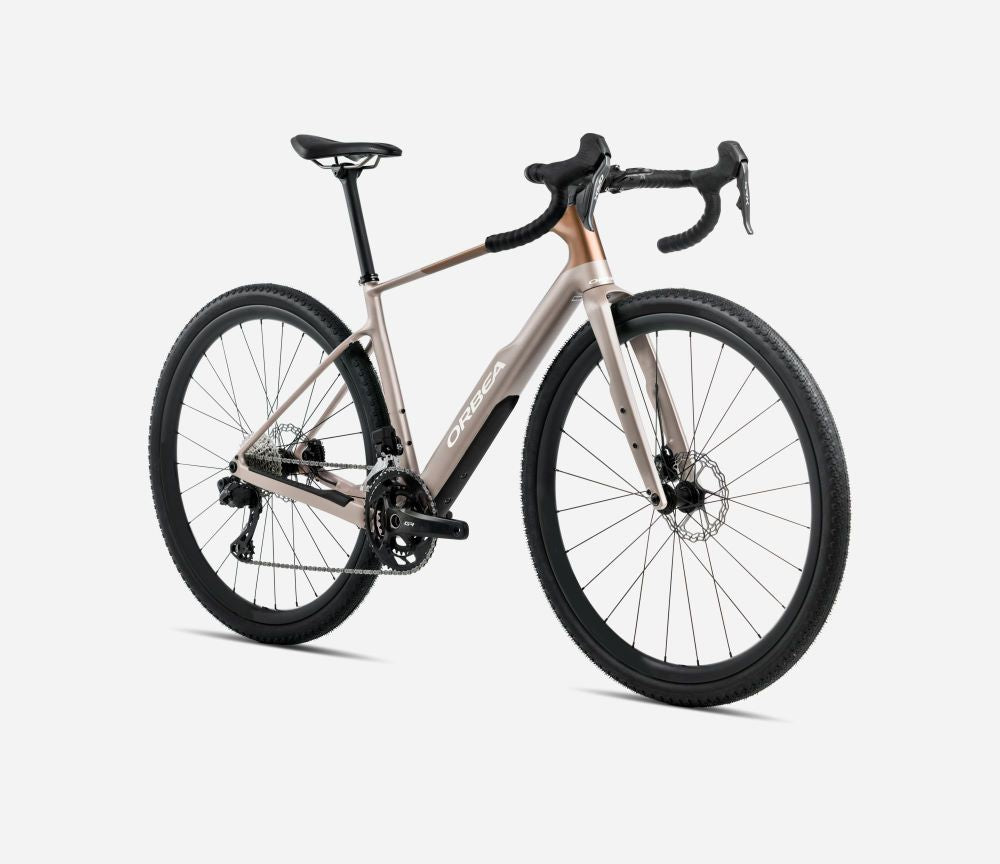

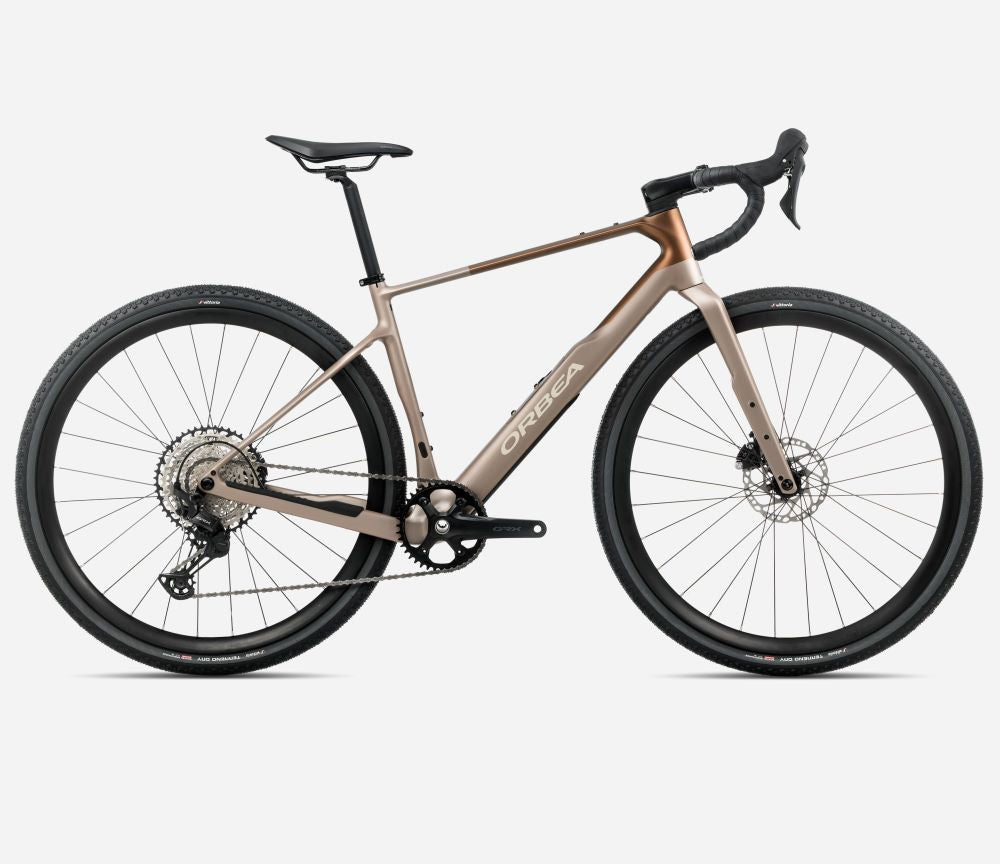

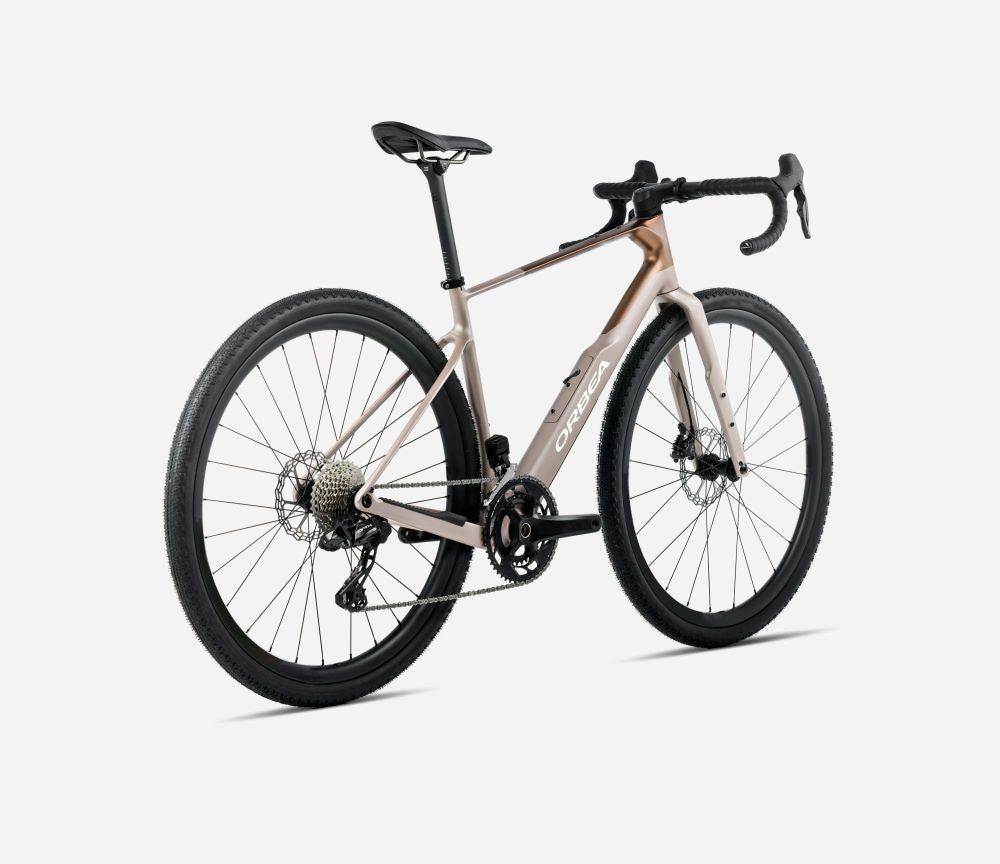

Orbea - Terra M30 Team 1X - 2026

The Terra is your best buddy; a powerful gravel bike for off-road adventures, whether bike packing or long-distance racing. It brings more comfort to your adventures on the road and lets you finally discover where that gravel path at the end of the paved road leads. Or how about an adventure through the night? Out there, the big, wide world is waiting for you. And the Terra is ready to discover it with you.

Features of the Orbea TERRA M30 TEAM Gravel Bike

• Carbon OMR monocoque frame
• Innovative Gravel geometry
• Mounting points for bottle cages and front rack
• Large tire clearance
• Storage compartment in down tube

Details of the Orbea TERRA Gravel Bike

• The Terra combines clever integration and features tailored to your needs with comfortable and precise gravel geometry to explore the world with you. Your understanding of gravel may vary by city, country or continent, but the adaptable Terra is always ready.

• Gravel Geometry - The Terra's complete design features geometry developed specifically for gravel use. Thanks to hard work and all the experience gained from developing road bikes and mountain bikes, the designers were able to put a balanced bike on the wheels with precise handling and maximum control.

• Comfortable - Whether on asphalt, the gravel road, the trail or pretty much any other surface, the Terra feels comfortable everywhere. The angles and dimensions have been specifically chosen for each frame size so that the bike offers maximum riding comfort.
• Seat tube - Thanks to the shorter seat tube and slightly more relaxed seat angle, the 27.2mm seat post can flex better. In addition, a little less material was carefully used at the lower end of the seat tube near the bottom bracket to perfect the stiffness. These two measures provide better vibration damping and more comfort.

• Tire clearance - For fast touring and efficient propulsion on gravel roads, the Terra can be equipped with 700x45c tires. And if you want more comfort, puncture resistance and grip, go for 650x50.

• LOCKR XXL - The Terra's carbon frame features a storage compartment hidden in the down tube. It is located behind the bottle cage and offers space for a spare tube, a pump or a CO2 cartridge and a selection of tools.

Specifications:

• Frame: Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.
• Fork: Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready
• Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
• Crankset: Shimano GRX RX610 40t
• Shifters: Shimano GRX RX610
• Cassette: Shimano CS-M7100 10-51t 12-Speed
• Rear derailleur: Shimano GRX RX822SGS

• Chain: Shimano M6100
• Handlebar: OC Gravel GR31, Reach 70, Drop 110
• Stem: OC Road Performance RP23, -5º
• Brakes: Shimano RX410 Hydraulic disc
• Wheels: Alloy, Tubeless, 700c, 21c
• Tyres: Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c
• Front Wheel Axle: Orbea Thru Axle 12x100mm M12 x P1 Hollow
• Rear Wheel Axle: Orbea Thru Axle 12x142mm M12 x P1 Solid inner threaded
• Seatpost: SP 0.2 Carbon, 27.2mm, Setback 20
• Saddle: Fizik Terra Argo X7 Aluminium Rail 150mm
• Handlebar Tape: Orbea Anti-Slippery/Shock Proof
• Storage: Accesories Containers
