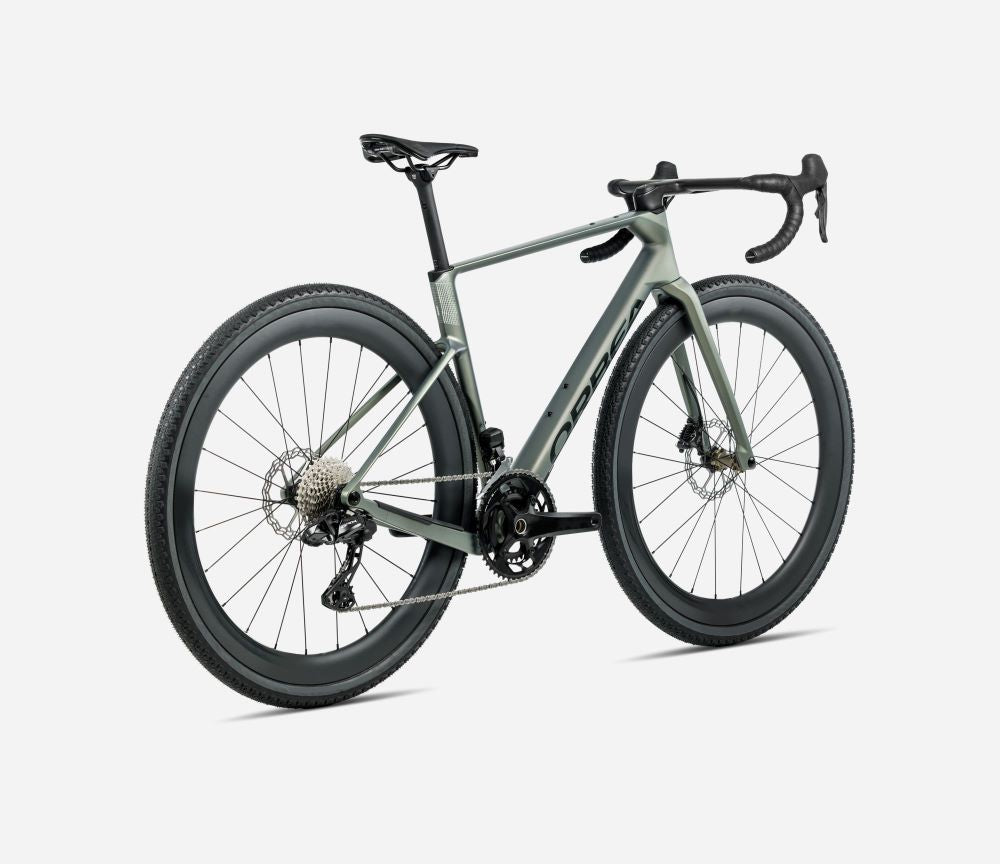

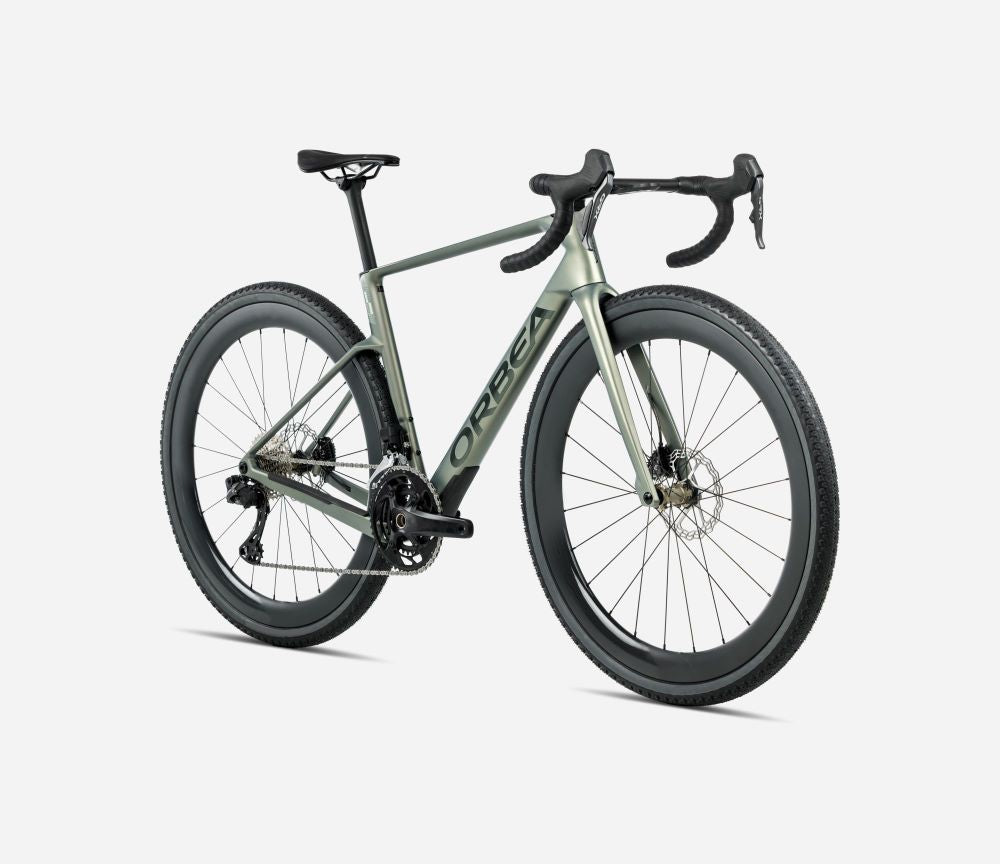

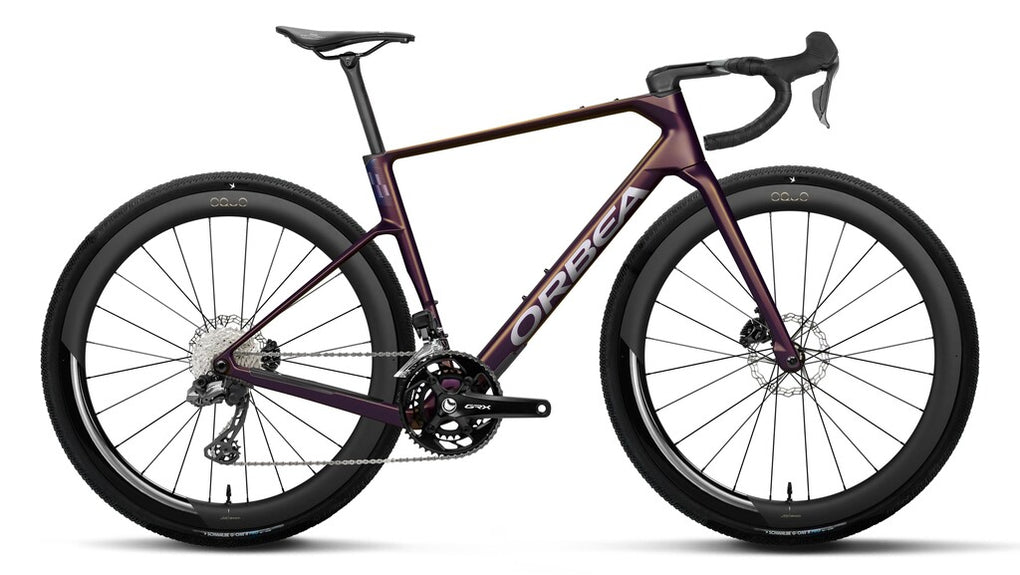

Orbea - Terra RACE M20i LTD

From the first moment fully designed for the use on gravel, the Orbea Terra is anything but a converted road bike or a slim mountain bike. The Terra IS gravel. It brings more comfort to your adventures on the road and lets you finally discover where that gravel path at the end of the paved road leads. Or how about an adventure through the night? Out there, the big, wide world is waiting for you. And the Terra is ready to discover it with you.

Features of the Orbea TERRA RACE M20iLTD Gravel Bike

• Innovative Gravel geometry
• Carbon OMX monocoque frame
• Vibration-damping rear frame design
• Size-specific stiffness
• Large tire clearance

Details of the Orbea TERRA Gravel Bike

• The Terra combines clever integration and features tailored to your needs with comfortable and precise gravel geometry to explore the world with you. Your understanding of gravel may vary by city, country or continent, but the adaptable Terra is always ready.
• Gravel Geometry - The Terra's complete design features geometry developed specifically for gravel use. Thanks to hard work and all the experience gained from developing road bikes and mountain bikes, the designers were able to put a balanced bike on the wheels with precise handling and maximum control.
• OMX Carbon - Maximum lightness and stiffness - OMX, Orbea's lightest and stiffest carbon layup, lays the foundation for speed. Fewer parts and precise manufacturing with minimal overlaps save 300 g without compromising stiffness.
• Aero Cockpit OC SH-RA10 - An exceptionally lightweight integrated aero cockpit with fully internal cable routing, ergonomic upper handlebars, and sprint-ready stiffness - for total focus on speed.
• Comfortable - Whether on asphalt, the gravel road, the trail or pretty much any other surface, the Terra feels comfortable everywhere. The angles and dimensions have been specifically chosen for each frame size so that the bike offers maximum riding comfort.
• Vibration-damping rear triangle design - The rear triangle is made for speed on rough terrain. It dampens vibrations and maximizes traction when you really let rip.
• Seat tube - Thanks to the shorter seat tube and slightly more relaxed seat angle, the 27.2mm seat post can flex better. In addition, a little less material was carefully used at the lower end of the seat tube near the bottom bracket to perfect the stiffness. These two measures provide better vibration damping and more comfort.
• Tire clearance - For fast touring and efficient propulsion on gravel roads, the Terra can be equipped with up to 700x45c tires.

Specifications:

•  Frame : Orbea Terra carbon OMX Disc, monocoque construction, HS 1,5", BB386EVO, 1X chain guide, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout.
• Fork: Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
• Steerer tube: FSA 1-1/2" Integrated Aluminium Cup
• Crankset: Shimano GRX RX820 31x48t
• Shifters: Shimano GRX Di2 RX825
• Cassette: Shimano Ultegra R8100 11-34t 12-Speed
• Rear derailleur: Shimano GRX Di2 RX825
• Front derailleur: Shimano GRX Di2 RX825
• Chain: Shimano M7100
• Handlebar: Integrated Bar and Stem OC SH-RA10, Road Aero Carbon, Reach 80, Drop 125
• Brakes: Shimano RX820 Hydraulic Disc
• Wheels: Oquo Road Performance RP50LTD
• Tyres: Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x40c
• Front Wheel Axle: Orbea Thru Axle 12x100mm M12xP1 Lite
• Rear Wheel Axle: Orbea Thru Axle 12x142mm M12xP1 Lite
• Seatpost: OC Performance XP10 Carbon, 27.2mm, Setback 0
• Saddle: Selle San Marco Shortfit 2.0 Start Up Off Road XiliteHandlebar Tape: Orbea Anti-Slippery/Shock Proof
